Filter technology of electric welding mask

Filter technology of electric welding mask

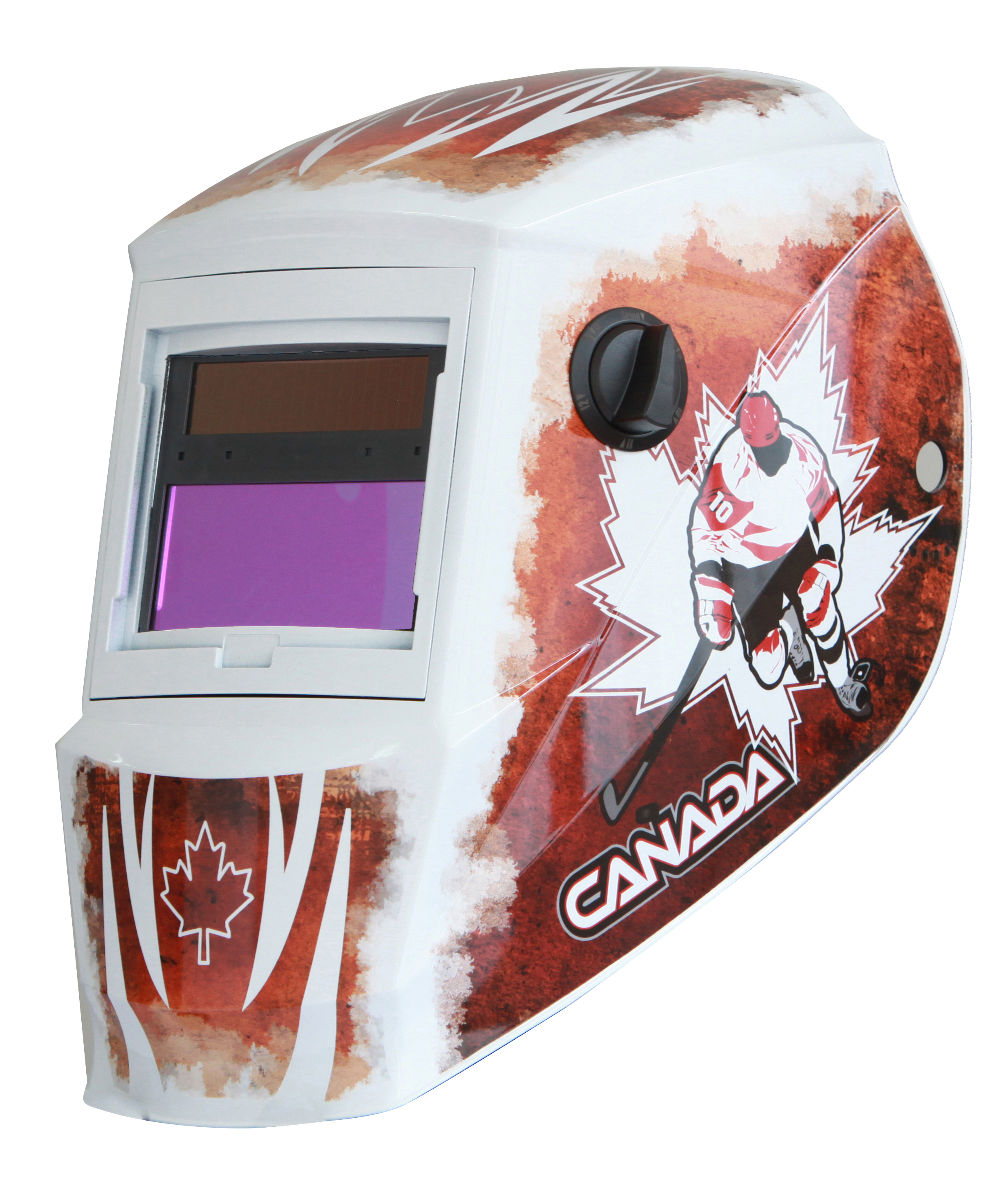

Welding mask is an important personal protective equipment, which plays a role in protecting the safety of workers in welding operations. It integrates optics, electronics, human body science, materials science and other multidisciplinary high-tech products, the use of high-quality LCD and glass plating combination as a blackout lens, the light induction system on the light sensor system can detect the generation and disappearance of arc light during welding instantaneously, and quickly drive the liquid crystal color, in order to achieve a safe and effective filtration of harmful light, Protect the welder's eyes and face from arc radiation.

The main functions of the welding mask include:

(1) Eye protection: through the double filter technology, to avoid harmful ultraviolet and infrared radiation generated by the arc, as well as the damage caused by welding strong light to the eyes, to prevent the occurrence of electro-optical ophthalmia.

(2) Facial protection: effectively prevent the splash and harmful substances in the operation to cause damage to the face, reduce the occurrence of skin burns.

(3) Respiratory protection: airflow oriented design, effectively reduce the harmful gases and dust released by welding to the body damage, prevent the occurrence of pneumoconiosis occupational diseases.

The photoelectric welding mask technology is based on light detection technology and liquid crystal technology, and when the internal electro-optical sensing circuit detects the light generated during welding (mainly infrared or ultraviolet), it will trigger the liquid crystal control circuit and apply the corresponding driving signal on the liquid crystal of the mask (transmitted TN liquid crystal) according to the preset light transmittance. In this way, the liquid crystal changes its transmittance as a light valve, filters out the infrared and ultraviolet rays harmful to the human eye generated by welding, and weakens the strong light to the degree that the human eye can withstand.

With the continuous development of technology, welding masks are also constantly being innovated. For example, the appearance of the light-controlled welding mask, which allows the welder to clearly see the welding work before the arc, and then automatically darken at the moment of arc, thereby protecting the worker's eyes. In addition, there are solar light-controlled welding masks, which can automatically adjust the degree of light filtering according to the strength of the ambient light, providing more accurate protection for welders.
