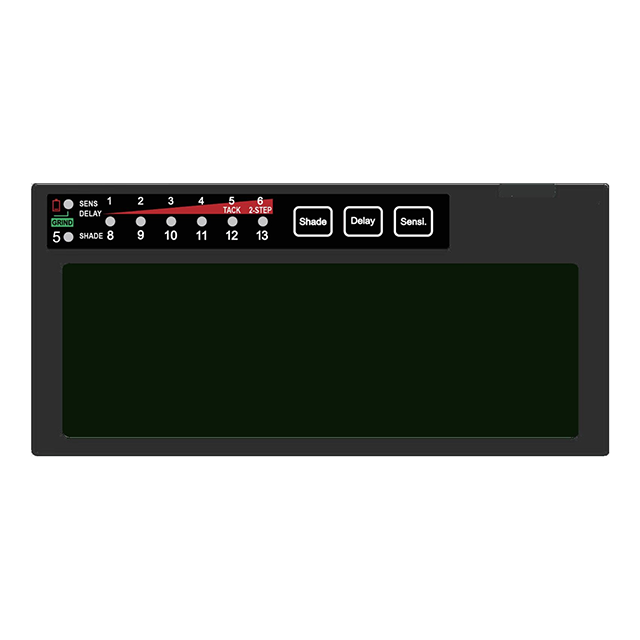

In the light state, this 2x4 welding lens has shade 3; it is clear enough to see your work without flipping up . The dark state shade level can be adjusted from 8-13. For oxy or plasma cutting, shade 5 darkness is also available. Grind mode is available for those that are not using a flip front helmet
In the market,Most multi shade 2x4 replacement ADF's measure is 8.4mm in thickness, making them too thick to fit into standard flip up pipeline style welding helmets. with 5.0mm thick, this 2x4 welding lens is the highest quality option that will fit in a standard flip front hood.
· Easy to Fits in a flip front welding helmet with no modification
· True color technology
· perfect 1/1/1/2 optical clarity rating
· clear view shade 3
· Shade 5/8-13
· Grind Mode with a green L.E.D indicator
· Sensitivity selector setting from 1 - 6
· Delay selector setting from 1 - 6
· Slim design 5.0mm thickness
· Step delay function
· Tack mode function
ADF Model | WD1 |
Optical Class | 1/1/1/2 |
Viewing Area | 96 x 33mm /3.78" x 1.30" |
Cartridge Size | 108 x 50.8 x 5mm / 4.25" x 2.0" x 0.2" |
UV/IR Protection | Permanent Shade DIN 13 |
Light State | Shade DIN 3 |
Dark State | Variable Shade 5/8-13 |
Sensors | 2 |
Grinding | Shade DIN 3 |
Sensitivity Control | DIGITAL(1-6) |
Reaction Time (swithing time) | 0.00015 sec |
Delay Control (Time from dark to light) | 0.06~2S+TACK_MODE+2_STEP |
Digital Display | YES |
Battery Type | 2×CR1025 (Replaceable) |
Solar Cell | YES |
Power On/Off | Fully Automatic |
TIG Rating | ＞2Amp |
Standard | EN379 CE / ANSI Z87.1 / CSA Z94.3 |
